| Typical Capacity: | 2200mAh @0.2C Discharge | Certifications: | CE, RoHS, UN38.3 |
|---|---|---|---|
| Charging Time: | 3-4 Hours | Discharge Temperature: | -40°C To 60°C |
| Type: | TRD18650-22L | Weight: | 42±1.5g |
| High Light: |
Low Temperature Lithium Battery 2200mAh, lightweight Low Temperature Lithium Battery, CE Rechargeable 18650 Cell |
||

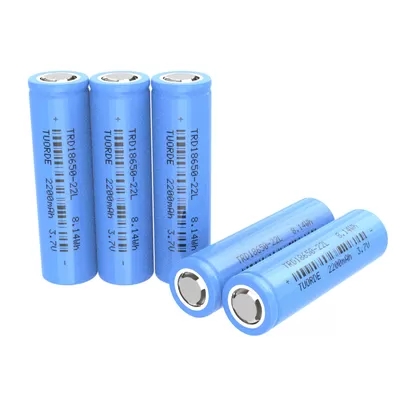

Low Temperature cell 2200mAh 18650 Lithium Battery Cell 18650 China Factory
Product Description:
18650 Lithium Battery Cell is a rechargeable cell battery that offers high-performance and high-output. It is designed with a size of 18mm X 65mm and a weight of 42g, that makes it lightweight and easy to carry. With a discharge temperature range between -40°C - 60°C and a storage temperature range between -20°C - 45°C, it provides a reliable and stable performance. Moreover, it has a cycle life of up to 500 times, ensuring the best performance and long-lasting use. This high-performance and high-output battery cell is perfect for a variety of devices.
Features:
1.Product Name: 18650 Lithium Battery Cell
2.Weight: 40g
3.Cycle Life: 400 Times
4.Max Charge Current: 2.2A
5.Discharge Temperature: -40°C - 60°C
6.Capacity: 2200mAh
7.Low temperature Battery Cell
8.Lithium Battery Cell
| No. | Item | Specifications |
| 1 | Model No. | YX18650-22L |
| 2 | Typical Capacity | 2200mAh @0.2C Discharge |
| 3 | Min capacity | 2150mAh @0.2C |
| 4 | Nominal voltage | 3.6V |
| 5 | Standard Charge | CC/CV,0.5C,4.20V |
| 6 | Standard Discharge | CC,02C,2.5V |
| 7 | Cut-off charge Voltage | 4.20V±0.05V |
| 8 | Cut-off charge Current | 0.02C(At CVmode) |
| 9 | Cut-off discharge Voltage | 2.5V |
| 10 | Charging Time | 3hours(standard charge) |
| 11 | Quick Charge Current | 2200mA(1C) |
| 12 | Quick Discharge Current | 1100mA(0.5C) |
| 13 | Max Discharge Current | 2200mA (1C) |
| 14 | Initial Impedance | ≤60mΩ |
| 15 | Weight | 42±1.5g |
| 16 | Operating temperature | Charging: 0℃~45℃ Discharging:-40℃~60℃ |
| 17 | Storage temperature | -20℃~45℃ |
| 18 | Storage Humidity | ≤75%RH |
| 19 | Standard environmental condition | Temperature:25±2℃ Humidity:45-75%RH Atmospheric Pressure:86-106KPA |
