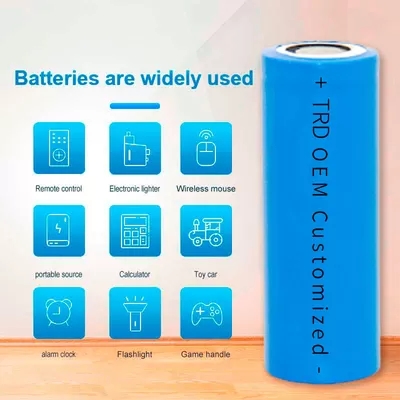

| Product Name: | 18650 Lithium Battery Cell | Color: | Blak Or Customized |
|---|---|---|---|
| Cycle Life: | 500 Cycles | Nominal Voltage: | 3.7V |
| Model No.: | YX18650-25L | ||
| High Light: |
Low Temperature Lithium Battery 2500mah, Portable Rechargeable 18650 Cell, 18650 Low Temperature Lithium Battery |
||
Charge Temperature 2500mAh 18650 Lithium Battery Cell 18650 China Factory
Product Description:
18650 Lithium Battery Cell is a rechargeable cell battery that offers high-performance and high-output. It is designed with a size of 18mm X 65mm and a weight of 46g, that makes it lightweight and easy to carry. With a discharge temperature range between -40°C - 55°C and a storage temperature range between -20°C - 45°C, it provides a reliable and stable performance. Moreover, it has a cycle life of up to 500 times, ensuring the best performance and long-lasting use. This high-performance and high-output battery cell is perfect for a variety of devices.
Features:
1. Product Name: 18650 Lithium Battery Cell
2. Weight: 46g
3. Cycle Life: 500 Times
4. Max Charge Current: 20A
5. Discharge Temperature: -20°C - 60°C
6. Capacity: 2500mAh
7. Low temperature Battery Cell
8. Lithium Battery Cell
9. Portable Battery Cell
| No. | Item | Specifications |
| 1 | Model No. | YX18650-25L |
| 2 | Typical Capacity | 2500mAh @0.2C Discharge |
| 3 | Min capacity | 2450mAh @0.2C |
| 4 | Nominal voltage | 3.7V |
| 5 | Standard Charge | CC/CV,0.5C,4.20V |
| 6 | Standard Discharge | CC,02C,2.75V |
| 7 | Cut-off charge Voltage | 4.20V±0.05V |
| 8 | Cut-off charge Current | 0.02C(At CVmode) |
| 9 | Cut-off discharge Voltage | 2.75V |
| 10 | Charging Time | 3hours(standard charge) |
| 11 | Quick Charge Current | 2500mA(1C) |
| 12 | Quick Discharge Current | 12500mA(5C) |
| 13 | Max Discharge Current | 20000mA (8C) |
| 14 | Initial Impedance | ≤18mΩ |
| 15 | Weight | 46±1.5g |
| 16 | Operating temperature | Charging: 0℃~45℃ Discharging:-40℃~55℃ |
| 17 | Storage temperature | -20℃~45℃ |
| 18 | Storage Humidity | ≤75%RH |
| 19 | Standard environmental condition | Temperature:25±2℃ Humidity:45-75%RH Atmospheric Pressure:86-106KPA |
